The NO-CLOG POT... You can't stop a SANSTORM!
| Sanstorm offers choices in popular sizes of pressure blasting and cleaning equipment filling designs, blast hose couplings, blast nozzles and holders to satisfy general or specialized work requirements. |
Sanstorm machines are built with two filling style methods -- "closed top" having a manual fill cap and fitting funnel or "open top" having automatic "pop up" fill plug. |
Both series machines embody the "No-Clog" principle of operation. In the Sanstorm machine, a venturi type abrasive "pick up" operation occurs with control - a "choke valve" is not required or used. Therefore, Sanstorm is the only machine design which will accomplish constant abrasive discharge and positive abrasive adjustment -- the two utmost important conditions of any pressure type blast cleaning equipment. |

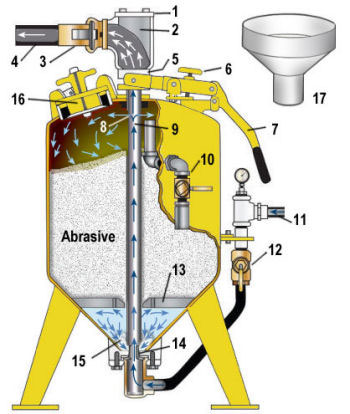

Cross sectional view of the CLOSED TOP machine reflects manual (at machine) control models.
Also available in dual line remote control (at blast nozzle) models.
|
CLOSED TOP DIAGRAM 1. Abrasive Outlet Elbow 2. Replaceable elbow Insert - Hardened Steel. Initial abrasive charge is "pocketed" in insert as protection against subsequent abrasive wear for long life result. 3. Kwik Fit Hose Coupling 4. Blast Hose 5. Swivel - Permits 360ยบ hose movement 6. Abrasive Adjustment Screw 7. Abrasive shut-off Lever for clean air blast to blow off work 8. Outlet Pipe Vents - Equalizes air pressure in machine 9. Outlet Pipe - Special hardened, abrasion resistent steel 10. Air Pressure Release (Blow-off) Valve - Line Assembly 11. Compressed Air Inlet Line 12. Compressed Air Intake Valve - Line Assembly 13. Guide - Centers Outlet Pipe over Air Inlet Nozzle 14. Air Inlet Nozzle - Special hardened, abrasion resistant steel 15. Air Abrasive Mixing Area - Venturi-type action assures positive abrasive control and constant abrasive discharge 16. Fill Cap 17. Special Filling Funnel - furnished with all "Closed Top" machines |
 |
Cross sectional view of the CLOSED TOP machine reflects manual (at machine) control models.
Also available in dual line remote control (at blast nozzle) models.
|

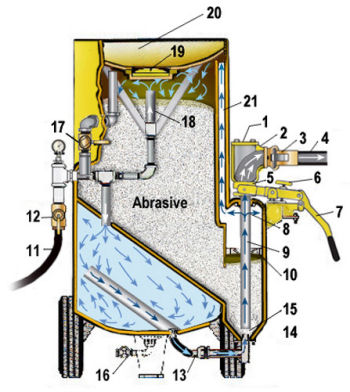

OPEN TOP DIAGRAM 1. Abrasive outlet elbow 2. Replaceable elbow insert - Hardened steel. Initial abrasive charge is "pocketed" in insert as protection against subsequent abrasive wear for long life result 3. Kwik Fit hose coupling 4. Blast hose 5. Swivel - Permits in excess of 180 degree blast hose 6. Abrasive adjustment screw 7. Abrasive shut off lever for clean air blast to blow off work 8. Outlet pipe vents - Equalizes air pressure in machine 9. Abrasive outlet pipe - Hardened, abrasion resistant steel 10. Guide - centers outlet pipe over air inlet nozzle 11. Compressed air inlet line 12. Compressed air intake valve - line assembly 13. Cleansed - dry air supply line 14. Air inlet nozzle -Special hardened, abrasion resistant steel 15 Air-abrasive mixing area 16. Moisture and oil release valve 17. Air pressure release (blow off) valve - line assembly 18. Fill plug cylinder - Pistol assembly 19. Automatic "pop-up" fill plug - rubber to rubber seal 20. Abrasive filling area 21. Air tube - permits air equalization |
 |
 |
For the legendary reliability of a Sanstorm, plus the ability to blast with virtually any type of media,
|
